Intermittent bonded ribbon production line explained
Equipment for producing rollable formats in optical-fiber manufacturing is supplied by Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. This setup is designed for 12- and 16-fiber ribbons, allowing buyers to assess its capacity against their planned product range. Factory space and installation needs may also be influenced by the system’s split-type construction.
SZ Stranding Line FTTH Cable Production Line Fiber Draw Tower
The stated construction speed for this particular production line is 600 m/min. The process combines fiber pay-off, gathering and guiding, intermittent resin dispensing, UV-LED curing, visual monitoring, capstan pulling, and take-up. When assessing suitability, the complete process matters rather than speed alone.
Before purchasing, review factory utilities, reel requirements, available floor space, and installation conditions. Request the supplier’s documentation package and confirm that the system matches your cable design and operating needs. Addressing these details in advance may limit setup delays and support a smoother start.
Main Takeaways
- Intended to produce rollable 12- and 16-fiber formats.
- Specified equipment speed: 600 m/min.
- Features a split-type construction.
- Includes curing, monitoring, pulling, and take-up stages.
- Check utilities, reels, installation needs, and supplier documents before buying.
Intermittent Bonded Ribbon Production Line
Explore The Intermittent Bonded Ribbon Production Line

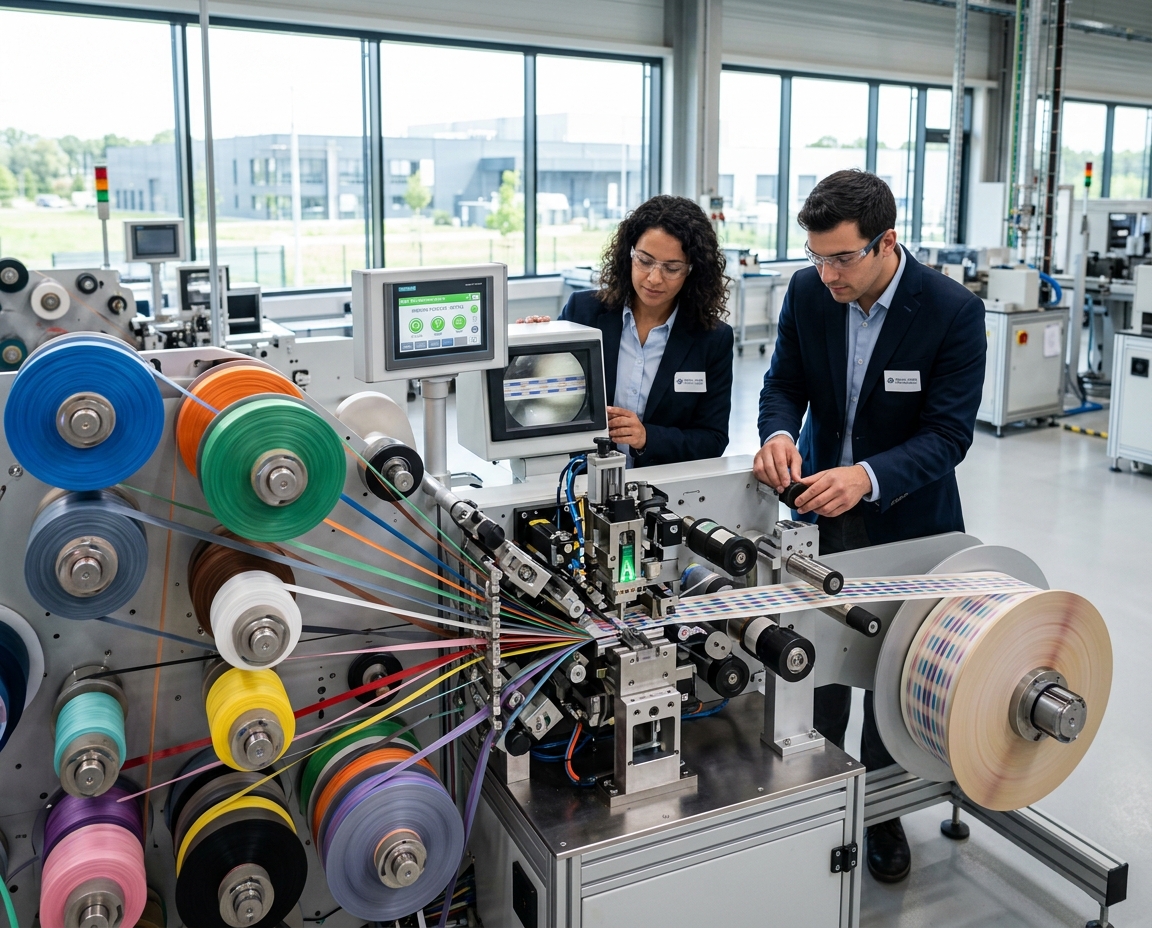

Three mold groups help form rollable IBR formats by positioning fibers for small adhesive dots. Mold position is adjustable by operators from 0 to 15 mm, helping produce consistent spacing and form.
Make Rollable Fiber Ribbons Using Precision Bonding
A 16-spool pay-off feeds the machine, while guide rollers with U-shaped grooves keep individual strands organized. Steady contact during processing is supported by the rollers’ hard-anodized surfaces. For 12F and 16F layouts, the adjustable valve setup uses 5+5+1 valves for 12 fibers or 5+5+5 for 16. Ask the supplier to verify tension control settings that suit your particular cable design.
Run 12- And 16-Fiber Configurations At Up To 600 m/min
The stated construction speed is up to 600 m/min. Pay-off reel options hold 25.2 km or 50.4 km of fiber according to the listed reel dimensions: Φ236 mm × Φ25.4 mm × 108 mm and Φ267 mm × Φ25.4 mm × 180 mm. T-type and fiber-optic take-up reels are also available for this system. Assess whether reel capacity suits your operating needs and anticipated changeover time.
Review The Production Line’s Key Equipment And Controls
Consistent output depends on aligning tension, resin placement, and UV exposure. The system helps operators match settings to their cable design and fiber ribbon requirements.
Coordinate Fiber Tension, Resin Dispensing, And UV-LED Curing
Every pay-off unit uses electro-pneumatic adjustment. Through the interface, operators set adhesive-dot spacing and counts while dispensers operate individually or in linked groups.
Three pre-curing ovens serve the mold groups ahead of UV-LED post-curing. Verify resin compatibility and operating conditions with the supplier.
The Siemens PLC and touchscreen display lamp current and oven temperature, generate alarms, and support preset lengths. Check the required cabinet and power supply arrangements before purchasing.
| Stage | Specification | Buyer verification |
| Fiber tension | Pay-off tension: 0.4 to 2 N with ±0.02 N; capstan tension: 50 to 500 g with ±5 g accuracy | Align settings with cable requirements |
| Dispensing of resin | Individually operated or linked units with adjustable adhesive-dot spacing and count | Check interface configuration |
| UV-LED curing | Three pre-curing ovens rated 800 W each; one post-curing oven rated 6 kW; 395 nm ± 3 nm; at least 85% cure during stable, high-speed operation | Confirm resin compatibility |
| Process monitoring | Siemens S7-1200 or S7-1500 PLC; 10.4-inch touchscreen; real-time lamp current and oven temperature, alarms, preset lengths | Check cabinet and power supply |
Plan Installation, Operating Conditions, And Line Configuration
Prepare a dedicated area before the equipment arrives. The optical fibre system requires an enclosed, clean, dry, and draft-free environment. Maintain temperatures between 15°C and 25°C and humidity at or below 85%. Maintaining these conditions helps preserve equipment protection and operating precision.
Review site utilities, electrical capacity, cabinet space, and cable design with your facilities team. The system needs nitrogen supplied at 7 bar and 99.99% purity, together with compressed air at 6 bar. The electrical supply must be three-phase, five-wire, and 380 V ±10%.
- Allow space for the cabinet, components, resin, and access to service parts. Before starting the line, confirm the temperature settings and tension control.
- Account for the specified reel size of Φ410 mm × Φ50.8 mm × 391 mm. Reels of up to 30 kg can be supported by the take-up unit.
- Include the main power feed-in cable in your site plan. Connection cables and cable trays are not supplied with the equipment.
Before ordering, verify the supply scope, reel types, and installation requirements. This assessment can reduce setup time and help prevent later delays. Request supplier confirmation of suitable settings for your fiber and cable design, including lamp accuracy and operating conditions. Clear planning supports a smoother startup for the production system.
Request Pricing For A Ribbon Production Solution Tailored To Your Needs
Manufacturers seeking rollable 12- or 16-fiber formats can evaluate this line at its stated speed of 600 m/min. Share details of your fiber layout, output targets, cable requirements, reel preferences, and factory conditions to obtain a quotation.
Check the proposed system for its 16-spool pay-off, UV-LED curing setup, take-up capacity, and included options. Examine the supplied components, dispensing-head options, unit functions, and cable design prior to ordering.
Listed documents include operating and maintenance manuals, a general layout drawing, electrical schematics, and a wear-parts list. Reviewing these documents can clarify setup time and future service requirements.
For pricing and configuration details matched to your production plan and site utilities, contact Shanghai Weiye Optic Fiber Communication Equipment Co., Ltd. Verify the supply scope and replacement parts before purchase.
